Type FB Heater

Type FB Heater

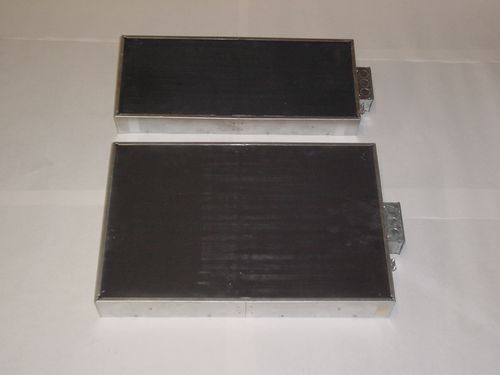

The Casso-Solar Technologies’ Infrared Heater Type “FB” is a medium wavelength industrial infrared heater with a woven quartz cloth surface that is finished with a black ceramic coating for high emissivity.

The quartz face has the properties of being transparent to the infrared energy generated within the heater module, providing maximum heat transfer efficiency over the usable wavelengths of 2.5-6.0 microns.

This corresponds to emitter temperatures of up to 1600°F (880°C) and 25 watts per square inch (3.9 watts per square centimeter)

Our Type FB infrared heaters are available in a wide range of standard sizes with custom designs available upon request.

A variety of voltages are available are available on Type FB infrared heaters, including but not limited to:

  • 120V
  • 220V
  • 240V
  • 380V
  • 480V
  • 575V
  • 600V

These flat panel electric infrared heaters provide a wide degree of flexibility as they can be used as standalone heaters or as part of a larger array.

If necessary, a single module can also be built with multiple zones that are independently controlled.

Please contact one of our Sales Engineers to discuss your specific application for a recommendation.

Special Features

  • Operating Environment Up To 1600F
  • Energy Watt Densities To 25 WSI
  • High Efficiency
  • Multiple Zone Capability
  • Modular Construction
  • Flexible Design
  • Extended Life

Standard Size Heaters

The “FB” heater is available in all the standard sizes listed in the configuration table below, plus 12" x 72".

Standard heaters are 3” deep, plus mounting studs.

Additional standard wattages include:

  • 5 watts per square inch
  • 10 watts per square inch
  • 20 watts per square inch

Additional voltages include:

  • 575 volt
  • 600 volts

Heaters are not normally kept in stock.

Special Size Heaters

The “FB” electric (infrared) heater can be custom designed in size, wattage, voltage and mounting configuration to system specifications.

The Maximum watt density is 25 watts per square inch, maximum voltage is 600 volts.

Please contact our sales department with regard to custom applications.

Request a Quote

Contact our Sales Team to discuss our extensive offerings and find out how we can deliver equipment custom-designed for your needs.

Technical Documentation

Standard Heater Configurations

Length (in) Width (in) Watts (W) Voltage (V) Phase Watt Density WSI Part No. Approx. Weight (lbs.)
6 12 1,080 120/240 1 15 FB120615A2 3
6 12 1,800 240/480 1 25 FB120625B2 3
24 6 2,160 240/480 1 15 FB062415B2 6
24 6 3,600 240/480 1 25 FB062425B2 6
12 12 2,160 240/480 1 15 FB121215B2 6
12 12 3,600 240/480 1 25 FB121225B2 6
24 12 4,320 240/480 1 15 FB122415B2 12
24 12 7,200 240 3 25 FB122425B3 12
24 12 7,200 480 3 25 FB122425C3 12
36 12 6,480 240 3 15 FB123615B3 18
36 12 6,480 480 3 15 FB123615C3 18
36 12 10,800 240 3 25 FB123625B3 18
36 12 10,800 480 3 25 FB123625C3 18
48 12 8,640 240 3 15 FB124815B3 24
48 12 14,400 240 3 25 FB124825B3 24
48 12 14,400 2480 3 25 FB124825C3 24
60 12 10,800 240 3 15 FB126015B3 30
60 12 10,800 480 3 15 FB126015C3 30
60 12 18,000 240 3 25 FB126025B3 30
60 12 18,000 480 3 25 FB126025C3 30

All units available with thermowell and strain relief to accept a 1/8" diameter Type "K" Thermocouple.

Add suffix "T" to part number when ordering.
