Ink Firing and Rolling Hearth Furnaces

Ink Firing and Rolling Hearth Furnaces

Ink Firing Furnace with Annealing and Cooling

Casso-Solar Technologies can provide full service end-to-end firing systems including dryers, firing furnaces, annealing and cooling stations. Dryers combined with rolling hearth furnaces can fire decorative or conductive ceramic ink coatings into the glass. The glass is then annealed or partially heat strengthened, for further processing.

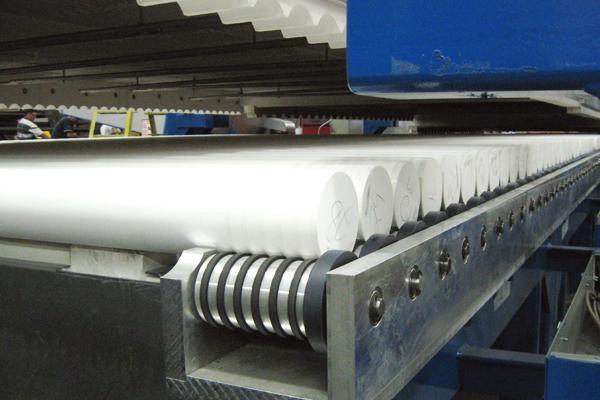

Furnace conveyors are comprised of high-tolerance fused silica rolls with a lift-out edge drive design to maximize uniformity. Cooling is accomplished both radiantly, and with forced air to properly control the rate of cooling. Systems can be designed for continuous or batch operation depending on the production volume requested.

The glass furnaces are provided with recipe-driven PLC control systems with touchscreen HMI units for operator interfacing. Our programming team will also work with the customer’s team to interface with any upstream and downstream equipment as required to provide a fully automated solution.

Rolling Hearth Furnace for Electrochromic Glass Production

There are a number of companies developing new techniques and processes for producing electrochromic glass (glass that tints when an electric current is applied) and in many cases those processes require the glass to be raised to an elevated temperature (500°C+) for a set period of time, then annealed and cooled.  Other steps may also be required, and these furnaces are modular to allow sections to be added as needed for each customer.

These furnaces typically are designed to run batch production, which is ideal for the long dwell times required in many electrochromic glass applications. By running batches rather than continuous production, the floor space utilized by the furnace is minimized.

Related Blog Posts:

Electrochromic Glass Production Using a Rolling Hearth Furnace

Request a Quote

Contact our Sales Team to discuss our extensive offerings and find out how we can deliver equipment custom-designed for your needs.

Technical Documentation
No items found.


  • High Quality Fused Silica Roller Conveyor
  • Rollers Installed with "Lift Out" Design to Allow for Easy Replacement and Cleaning
  • Two-Part Furnace Construction - Top Section on Lift System for Easy Access to Interior
  • Equipped with Casso-Solar FHT and/or Furnace Tube Heaters for Rapid Heat Up and Energy Efficiency
  • Fully Insulated with High-Temperature Refractory to Minimize Energy Use at Steady State
  • Can Be Built to Handle Sizes Ranging from Small Samples (12" x 12") up to Full Size Sheets of Glass

Modular Construction

Casso-Solar constructs each furnace using only modules required by the customer's process:

  • Preheat Module
  • Fire/Cure Module
  • Annealing Module
  • Radiant Cooling Module
  • Ambient and/or Refrigerated Cooling Module
