Type V-Series Heater

Type V-Series Heater

The V-Series is perfect for applications that require high power, fast heat-up and cool-down in addition to precise process control and uniform heating.

The V-Series element is a stamped foil of a high temperature alloy that provides extended life.

Life Expectancy of these high temperature foil heaters can be in excess of 12,000 Hours depending on the operating temperature.

The V-Series elements are continuously bonded to a high temperature insulating refractory board, which stabilizes the element and insures uniform heating across the full element length.

Hot spots and element deformation are prevented throughout the life of the heater.

The V-series is the ideal solution for high-speed web heating and drying applications due to its ability to quickly respond to changes in line speed and temperature fluctuations.

For customers requiring very fine-tuned levels of process control across the width of their web, a V-series heater can be manufactured with individual element zoning allowing for the ideal heat profile to be created.

You can contact one of our Sales Engineers today to discuss your application requirement and the type of high temperature heaters you may be looking for.

Request a Quote

Contact our Sales Team to discuss our extensive offerings and find out how we can deliver equipment custom-designed for your needs.


  • Fast On/Off Response Time
  • Robust Construction
  • Replaceable Type K Thermocouple
  • High Power Density in Comparison to Other Panel Heaters
  • Element Design Prevents Deformation - Especially in Comparison to Competitive Stamped Element Heater


  • Watt Densities: Up to 100 watts per square inch
  • Voltages: Up to 600 volts. 50/60 Hertz
  • Wavelength Emission: 2.0-6.0 microns
  • Temperature Range: Up to 2100°F
  • Weight: Average 8 Lbs. per square foot
  • Life Expectancy: 12,000 hours and more
  • Warmup Time: Less than 5 seconds

Industries & Applications

  • Textiles drying, curing, laminating
  • Paper, Film & Foil - drying, curing, laminating
  • Paint and Powder Preheat and cure
  • Continuous Coil Coating
  • Industrial Fabrics and Non-Wovens
  • Printing - Paper & Film

Available Options/Customizations

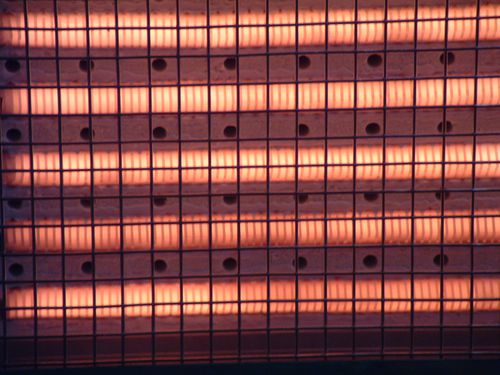

  • Air Holes for Process or Cooling Air
  • Mulit-Zone Configurations
  • Integrated Exhaust
  • Individual Element Control
  • Integrated Protective Screen
  • Pyrometer Sight Hole
